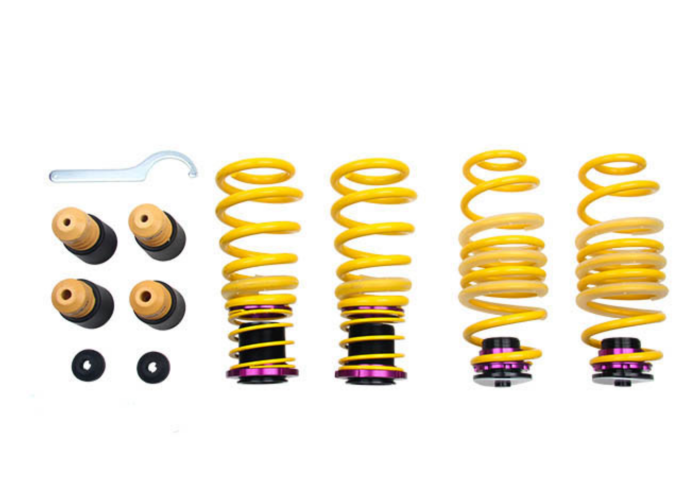

KW Height Adjustable Springs for Audi B9 A4/S4 A5/S5 Sportback/Cabrio

KW height adjustable spring kits are a great alternative to conventional springs. You dont have to be satisfied with a fixed lowering as you can adjust the height with the KW height adjuster even after the kit has been installed.

Your vehicle not only gets a more dynamic look with the KW height adjustable spring kit, but the steering behavior and response of the standard dampers becomes more agile. All driver assistance systems and comfort features of an adaptive series suspension remain with our vehicle specific developed spring set up.

No more 30-30 or 40-40!
With conventional lowering springs you have to decide on the lowering from the beginning, but not with the KW height adjustable spring kits. Depending on the vehicle specific application, you can change the lowering within the adjustment range with the threaded spring perch even when the springs are already installed. For example, the KW height adjustable spring kit for an Audi S5 allows you to lower the car in the range of 5-35 mm, and will not have any difficulties to adjust the lowering when changing your wheel/tire combination.

OEM Quality
The height adjustable spring or H.A.S. kits from KW use high-quality springs made of chrome-silicon steel that are vehicle specific and adjusted to the respective standard suspension dampers and wheel loads. At the development of the respective spring kits we consider that the spring rates will perfectly harmonize with the different damper characteristics of your adaptive series suspension.

With their high quality (surface) finish and the KW height adjuster, our KW height adjustable spring kits delivery always includes the vehicle-specific bump stops with a dust protection system to protect your standard suspension against wear & tear caused by spray and salt.

Features:

• individual height adjustment of the standard suspension kit
• adaptive damper control remains active
• vehicle specific spring rates
• better steering behavior
• improved looks

Application Guide:

• 2018 - Present Audi A4 Quattro (B9)
• 2018 - Present Audi S4 Quattro (B9)
• 2018 - Present Audi S5 Sportback (B9)
• 2018 - Present Audi A5 Sportback (B9)
• 2018 - Present Audi A5/S5 Cabriolet (B9)

Lowering Adjustment Ranges (VEHICLES WITHOUT Electronic Dampers)

KW H.A.S. Kit, (B9) Quattro, without Electronic Dampers (50mm Ø)

in inches:
Front: 0.0" to 0.8"
Rear: 0.0" to 0.8"

Footnotes:

- Only for cars with damper diameter 50mm (not 48,5mm) on the front axle; measured at the damper body just below the OE spring seat.
- Not for cars with electronic damping.
- Front and rear height adjustable (front and rear springs with threaded height adjusters). Stock shock absorbers including electronic controls are being utilized.

Lowering Adjustment Ranges (VEHICLES WITH Electronic Dampers)

KW H.A.S. Kit, (B9) Sedan Quattro, with Electronic Dampers

in inches:
Front: 0.0" to 0.8"
Rear: 0.0" to 0.8"

Footnotes:

- Only for vehicles equipped with electronic dampening control
- Front and rear height adjustable (front and rear springs with threaded height adjusters). Stock shock absorbers including electronic controls are being utilized.

Part Numbers:

SKU 253100AS (Non EDC)
SKU 253100AU (EDC Equipped)
