Eventuri Carbon Fiber Intake System V2 for F9X BMW M5 / M8

TAG Motorsports is pleased to offer the Eventuri Carbon Fiber Intake System for F9X BMW M5 and M8 models.

Eventuri Carbon Intake System

Acceleration Time : 60-130mph Reduced By 0.22 seconds
Max Flow Rate Per Airbox at 28″ H2O: Stock 620 CFM, Eventuri 736 CFM

The F90 M5 and F9X M8 Eventuri intake system was developed through extensive real world testing and airflow simulation analysis. It features sealed filter housings to maintain a steady IAT, even while stationary. The shrouds which seal the housings, coupled with our scoop and shield combination ensures unrestricted airflow whilst maintaining low IATs through cold air saturation. Our large front air scoops transfer ambient air directly into the intake area thus ensuring the engine doesn’t suffer from heat soak. In addition, our gold heat-reflective lined shields have integrated flow guides which direct the ambient air from the scoops into the filters. We have also managed to increase the inlet tube cross-sectional area by over 30% compared to the stock intake as it feeds through the openings in the strut braces. This allows the turbos to work more with less restriction and reduce the waste-gate duty cycles.

Some photos show our optional F90 M5 Intake system available separately.

The Eventuri Difference

The F90 M5 / F9X M8 Eventuri system uses our Patented Carbon Fibre Housings with our Gen 2 bespoke filters, which provide an aerodynamically efficient airflow path from the filter to the turbos. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect and maintains laminar flow conditions to reduce the drag on the turbo.

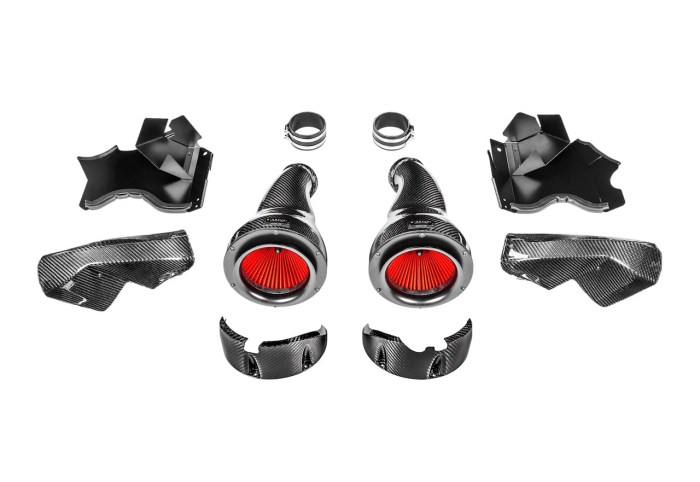

Each intake system consists of:

2 x Carbon Fiber Venturi Housings with Integrated Tubes
2 x Bespoke High Flow Generation 2 Filters
2 x Carbon Fiber Filter Shrouds
2 x Aluminium Inlet Cowls
2 x Carbon Fiber Air Scoops
2 x Laser Cut Heat Shields lined with Gold Heat Reflective Material
2 x Laser Cut Air Ramps integrated into the Heat Shields
High Quality Silicon Couplers and OEM Spec Hose Clamps
Optional Carbon Turbo Inlets in gloss (EVE-F9XM5M8-CHG) or matte (EVE-F9XM5M8-CFM-CHG) finish

** This item is not eligible for return **

Eventuri Carbon Turbo Inlet Set (Optional)

Acceleration Time : 60-130mph Reduced By 0.12 seconds

Fitment for F90 M5, F9X M8, also fits with stock airboxes.

Presenting the perfect addition to our F90 M5 intake system to optimize the flow path all the way to the turbos. Our carbon inlets have a larger volume than the stock inlets by maintaining a larger diameter all the way to the turbos. The stock inlets narrow down immediately after the connection to the intake which creates a restriction especially at higher boost levels. We have alleviated this restriction and also designed the curvature to be as smooth as possible allowing the turbos to reach peak boost sooner.

During development we also tested inlets with larger openings and redesigned the intake to have an oversized connection to the inlets. However, tests showed no further benefit and so we proceeded with this version, which allows our current intake to be used without any modification while producing the best performance gains.

Some photos show our optional F90 M5 Intake system available separately.

The Eventuri F90 M5 inlets are manufactured from high temperature prepreg carbon fiber and come assembled with a number of other components engineered to perform a specific purpose and fabricated to the highest of standards.

Each inlet inlet set consists of:

Prepreg Carbon Inlet Pair
CNC Machined Turbo Flanges
CNC Machined Breather Valve Assembly
** This item is not eligible for return **

Applications:

2018+ BMW M5 / M5 Competition / M5 CS (F90)
2019+ BMW M8 / M8 Competition (F9X)


SKU: EVE-F9XM5M8-CF-INT, EVE-F9XM5M8-CHG
