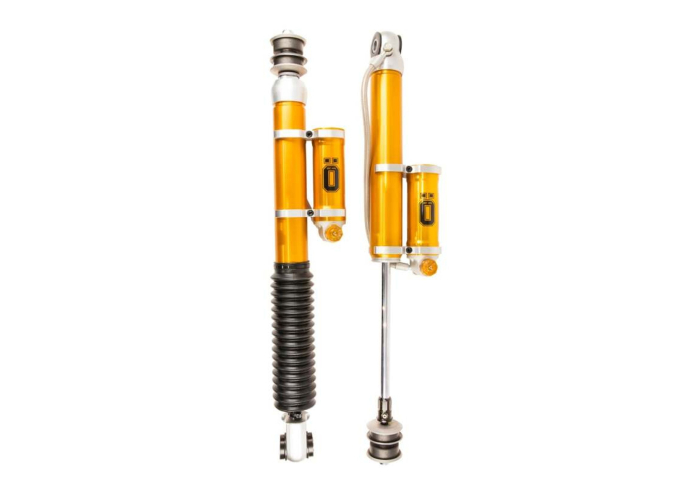

Ohlins Adventure STX Damper Set for Mercedes-Benz G-Class (W463) (1990-2018)
TAG Motorsports is pleased to offer the Öhlins Adventure STX Damper Set for the Mercedes-Benz G-Class (W463) (1990-2018).
Truck and SUV Series: Where capability meets craftsmanship.
The Öhlins Truck & SUV Series brings race-bred damping precision to the world of off-road performance. Developed for serious explorers, overland adventurers, and performance truck enthusiasts, this suspension system reflects over 40 years of elite motorsport and rally expertise—refined for the demands of modern off-road terrain.
Built on Öhlins' proven STX and PDS (Progressive Damping System) technologies, each system offers a new benchmark in chassis control, comfort, and adaptability across varied landscapes. Whether traversing high-speed desert trails or navigating rocky ascents, the Truck & SUV Series is engineered to maintain composure, protect components, and inspire confidence far from the pavement.
With two-way adjustability, drivers can fine-tune both compression and rebound to match vehicle loadout, spring rate, and terrain. The monotube aluminum body, large-diameter pistons, and remote reservoirs ensure thermal stability, extended travel, and precise response—no matter how punishing the conditions.
Key Details
- Monotube Design – consistent, fade-resistant damping
- Lightweight Aluminum Body – strength without excess weight
- Separated Reservoir – improved cooling and extended performance
- Two-Way Adjustability – compression and rebound tuning for terrain, load, and driver feel
- Sealed Spherical Mounts – durability and articulation in demanding environments
- Two-Year Warranty – engineered to withstand the elements
Application and Specifications
1973-2018 Mercedes-Benz Gelandewagen/G-Class Damper Set (-W463), 0-40mm Lift
Technology: STX
Target ride height: 0-40mm Lift
Extended length: front 23.7 in, rear 24.2 in
Stroke length: front 6.7 in, rear 8.4 in
Front spring rate: Not Included
Rear spring rate: Not Included
Notes
- Systems offer separate rebound and compression adjustability and incorporates a separate hosed reservoir.
Öhlins part number: MEV MY46
Damper set. Springs not included.
Fits: Mercedes-Benz G-Class (W463) (1990-2018)
| SKU | MEV MY46 |
|---|---|
| Brand | Ohlins |
| Exhaust Tip Size | 90mm |
